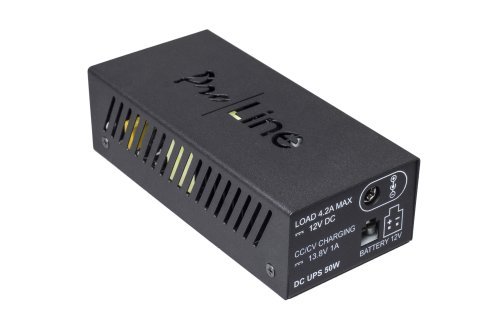

Energyfive DC UPS 50W 12V stabilized

Energyfive DC UPS 50W 12V stabilized

$ 50.00

out of stock

SKU: EF6012C-12V

DC UPS 50W 12V has a built-in BUCK-BOOST stabilizer for power with a stable voltage of 12 V from a lead-acid battery. Unlike EF6012C and EF9012C in which the output is not stabilized and the voltage varies in the range from 13.8 V (the 220 V is available, the battery is charged) to 10.8 V (the battery is discharged) .

Specification

DC UPS 50W 12V
Input	100 ~ 260 V AC 1A 47 … 63 Hz
Output	12.0 ±0.6 V, 4.2 A
Battery charge	13.8 V, 1 A
Rated power	50 W
Efficiency	main power: 81% by battery power: 93%
Charging method	CC/CV
Protection	from short circuit; output overload; overvoltage; reverse-polarity; from deep battery discharge.
Battery cutoff voltage	10.8 V
Start by battery	at voltage > 12.0 V
Battery type	Lead-acid 12 V (VRLA - AGM/GEL)
Recommended battery capacity	7 … 20 Ah
Working temperature	100% load: 0 … +40 °C (+32 … +104 °F) 50% load: +40 … +60 °C (+104 … +140 °F)
Working humidity	up to 90%, non-condensing
Dimentions	133×62×39 mm (5.24×2.44×1.54″)
Weight	320 g (11.29 oz)
Included	DC UPS 50W 12V - 1 pcs; Power cord 220 V AC (0.5 m) - 1 pcs; Battery cable (0.5 m) - 1 pcs; Power cord DC (0.5 m) - 1 pcs
