Embedded UPS for network switches

EF6012 and EF9012 add reserve power to network equipment using external lead-acid batteries. Using this instead of the original power supply, gets rid of excess conversions to AC and the accompanying energy loss. This means battery life is longer. Also, the UPS occupies no cabinet space.

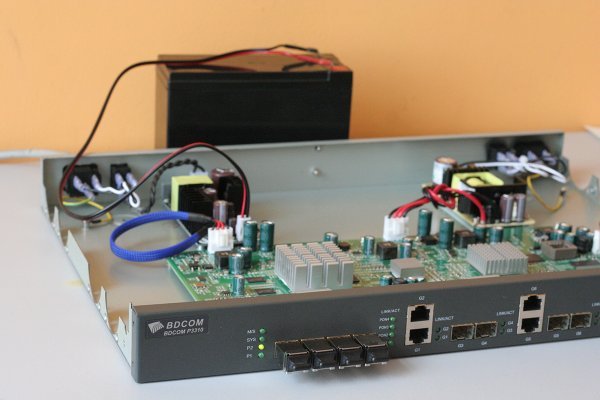

Battery powered BDCOM P3310

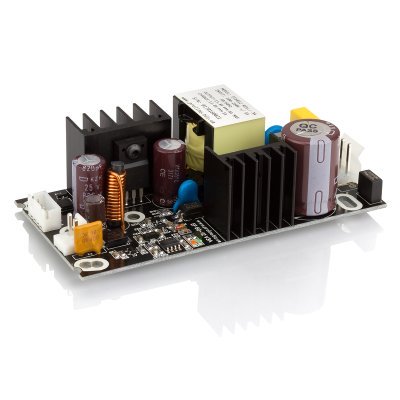

EF6012 easily charges a 12 Ah battery, which will last for a several hours. For EF9012 optimal battery is — 30 Ah, but it's possible to decrease charge current for a smaller battery — there is a switch for it.

UPS charges a battery in CC/CV mode, as recommended by the lead-acid battery manufacturers. It prevents overcharging as well as deep discharge. In the case of a critical discharge, the device switches off and will switch on again when a fresh battery is connected or the AC appears. Recommended battery types: SLA (VRLA) AGM and GEL.

UPS fits most devices perfectly, replacing stock power supply: mounting holes and jacks match.

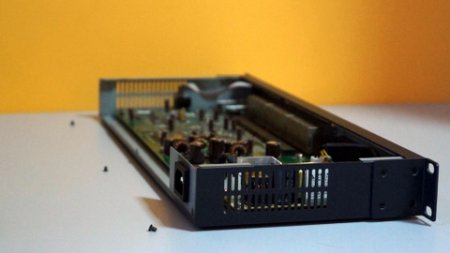

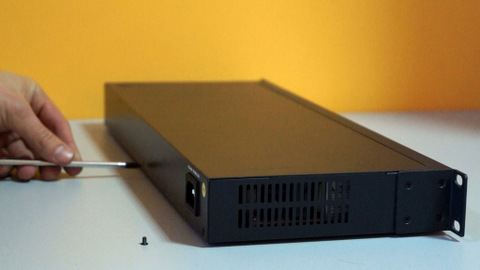

1. Unscrew the bolts and remove the top cover

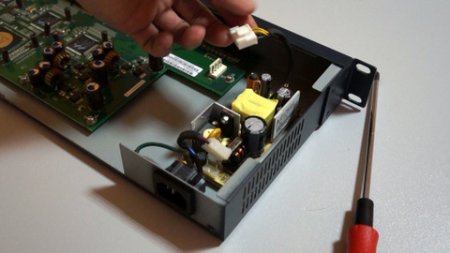

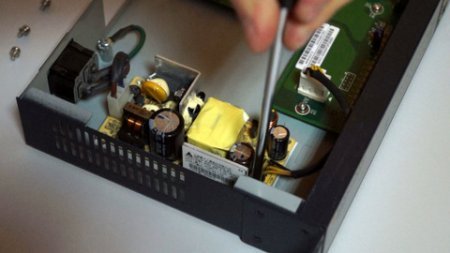

2. Unscrew 4 more bolts and switch off two jacks

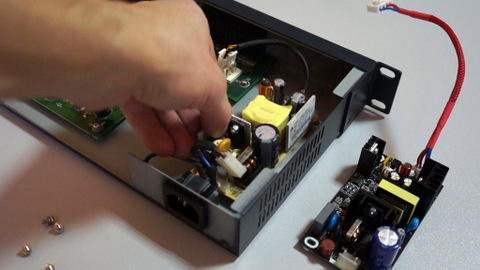

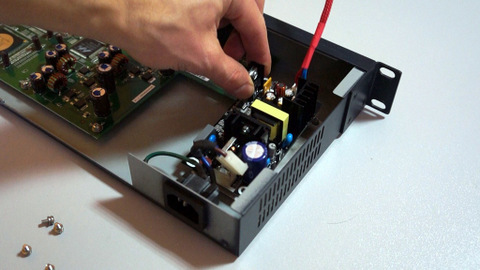

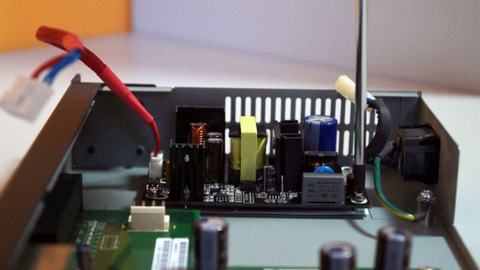

3. Replace stock power supply with UPS

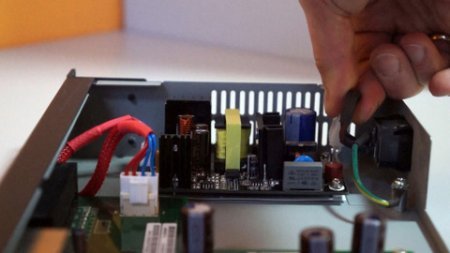

4. Tighten back 4 bolts

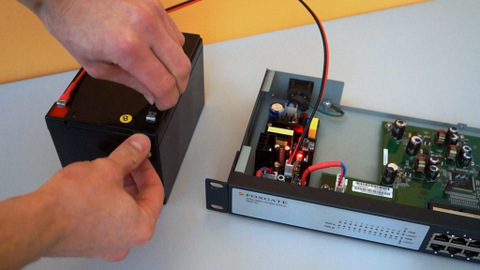

5. Connect battery — switch will start automatically

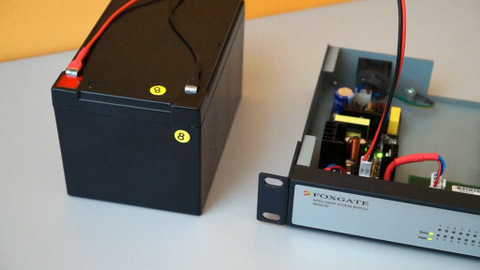

6. Finally, connect the cable to the battery and bring it out through the case and close the switch.

Cables are sold separetely.


  • Input: 100-260 V AC, 1 A max;
  • Output to device: 13.8 V, 4 A max;
  • Battery output: 13.8V, 1 A max;


  • Input: 100-260 V AC, 1.5 A max;
  • Output to device: 13.8 V, 7 A max;
  • Battery output: 13.8V, 2.5 A max;

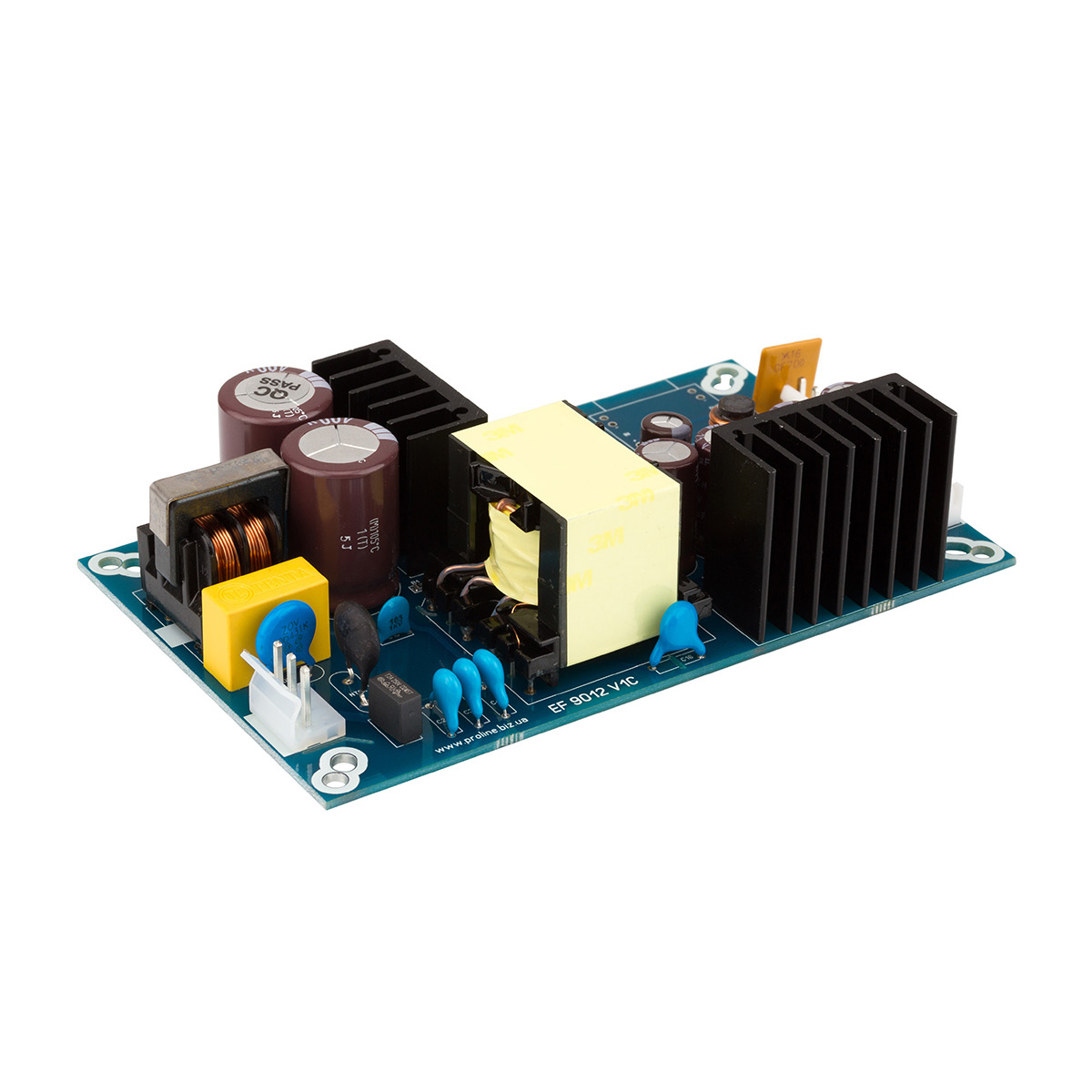

Energyfive EF9012 - embeddable UPS
