List of compatible switches and OLTs with our UPSs
Example: dlink

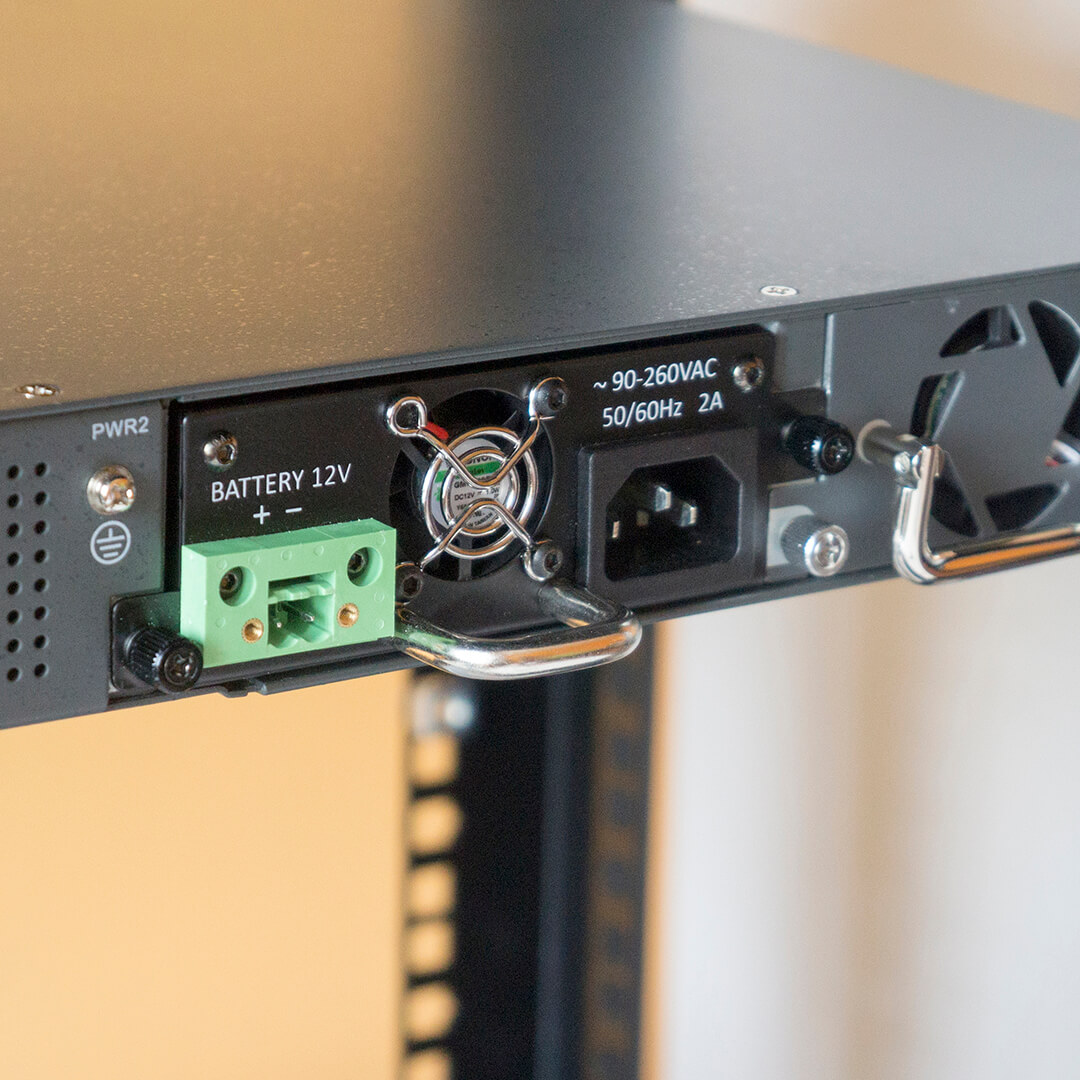

BDCOM OLT P36XX/GP3600 series (P3608, P3608B, P3612, P3616, P3616-2TE, GP3600-04, GP3600-08, GP3600-16)
UPS: EF9012C-3600
Installing to the PWR1 or PWR2 slots
BDCOM EPON OLT P3600-08E, P3600-16E (appeared in 2022)
UPS: EF100-3600-16E
Installing to the PWR1 or PWR2 slots
BDCOM SWITCH S3700 series (S3740, S3740F, S3756, S3756F, S3756M)
UPS: EF9012C-3600
Installing to the PWR1 or PWR2 slots
BDCOM EPON OLT P3600-04 / P3600-08 (появились в 2022-м)
UPS: EF6012
C-Data OLT FD1216S / FD1108SN / FD1208SN / FD1216SN / FD1608SN / FD1616SN
UPS: EF9012

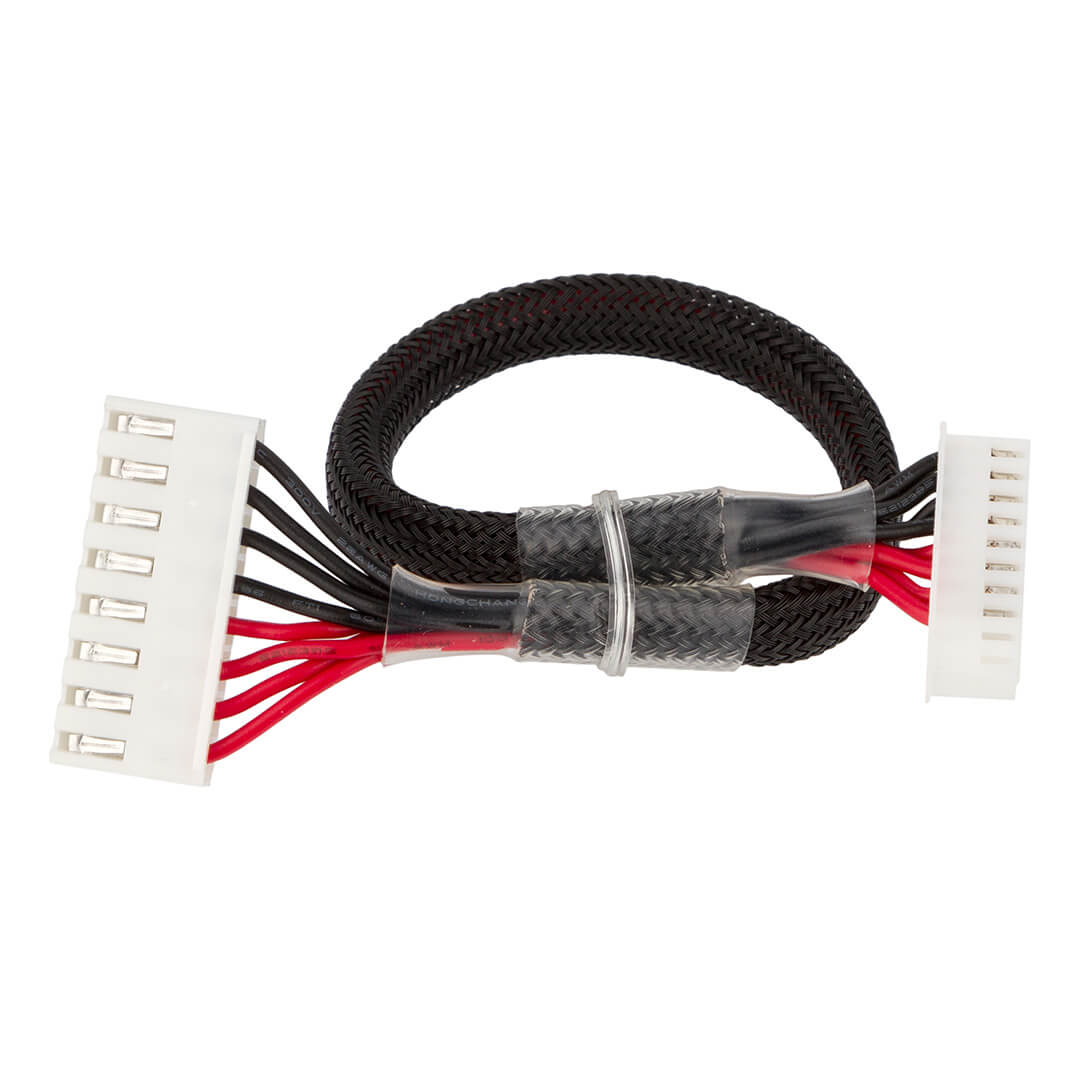

Adapter: ADAPT-NX10-NS8-BLACK
Non-standard connector 220 V: NS39-G3
C-Data OLT FD1216S-R1-DAP
UPS: EF9012

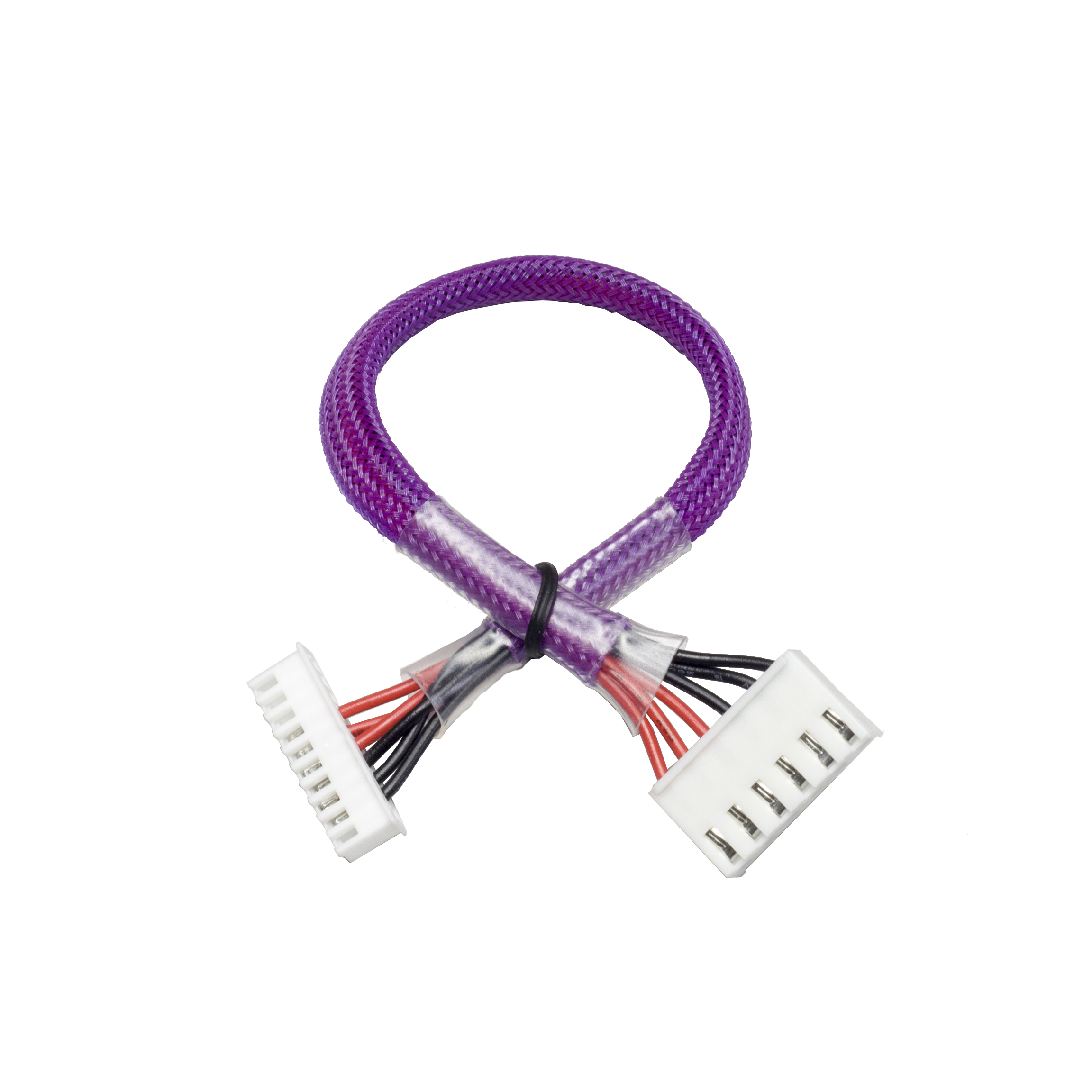

Adapter: ADAPT-NX10-NS6-PRPL
Non-standard connector 220 V: NS39-G3
Cisco SF200-24, SF300-24/48, SG200-26, SG300-28
UPS: EF6012

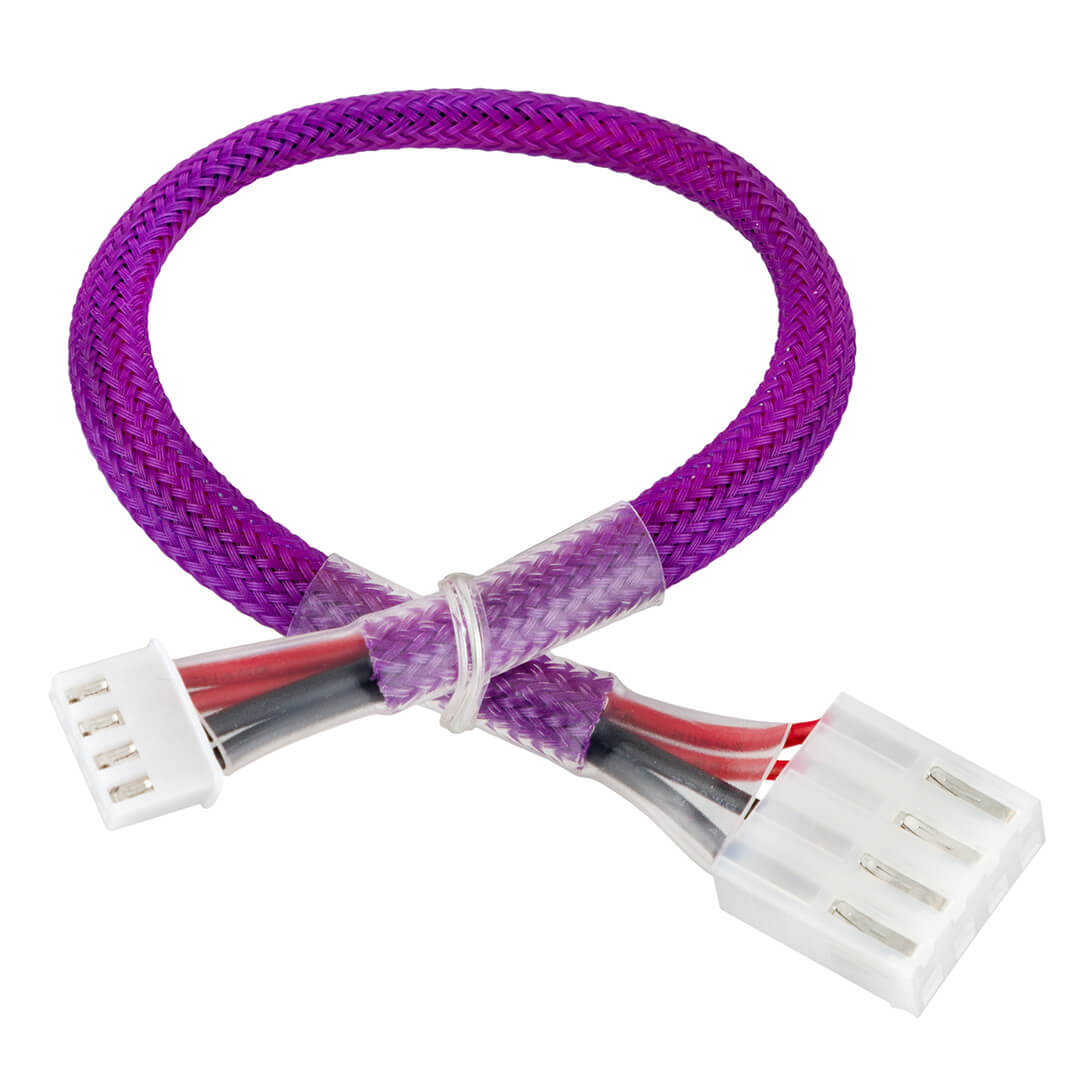

Adapter: ADAPT-NX4-PHU4-PRPL
In the connector 220V, need to rearrange the pins from the position L-N-- to -N-L-
D-Link DES 3200-52
UPS: EF6012

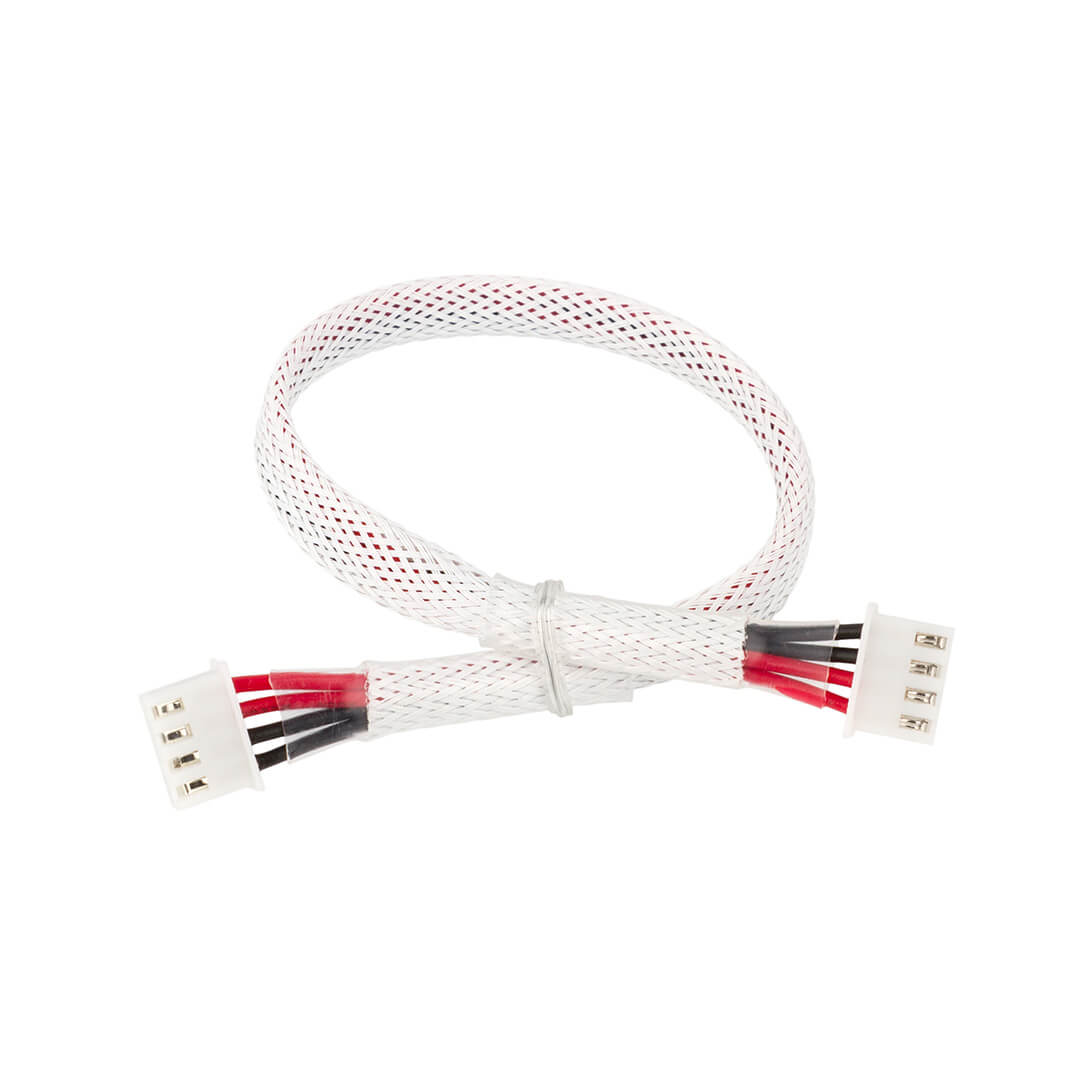

Adapter: ADAPT-NX4-NX4-WHITE
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
D-Link DGS-1510-20
UPS: EF6012
Adapter: ADAPT-NX4-NX4-WHITE
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
D-Link DGS-1510-10L/20L/28L/52L/ME

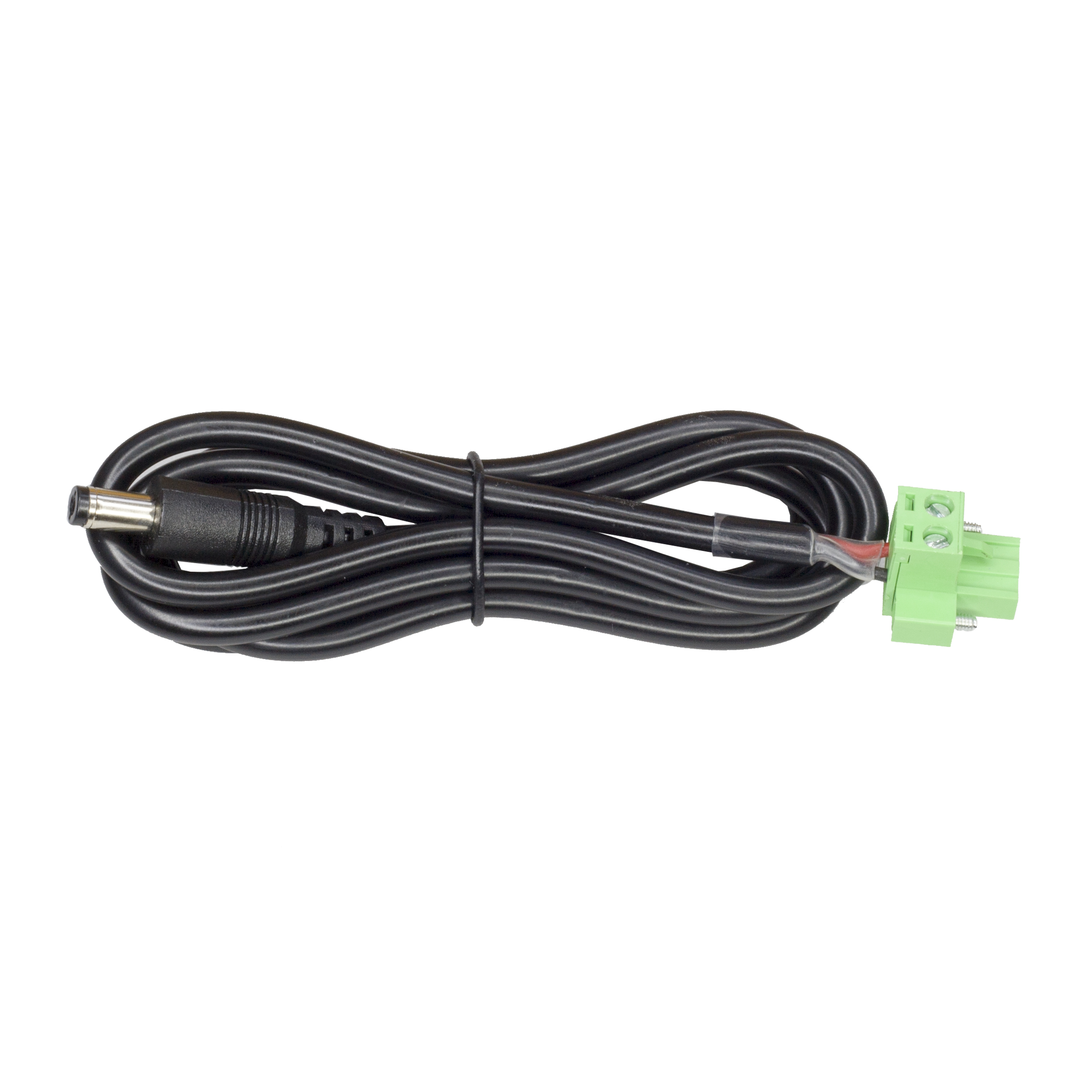

Adapter: ADAPT-RPS-DLINK-2P
Uninterruptible power through the RPS
D-Link DGS-3120-48TC
UPS: EF9012C

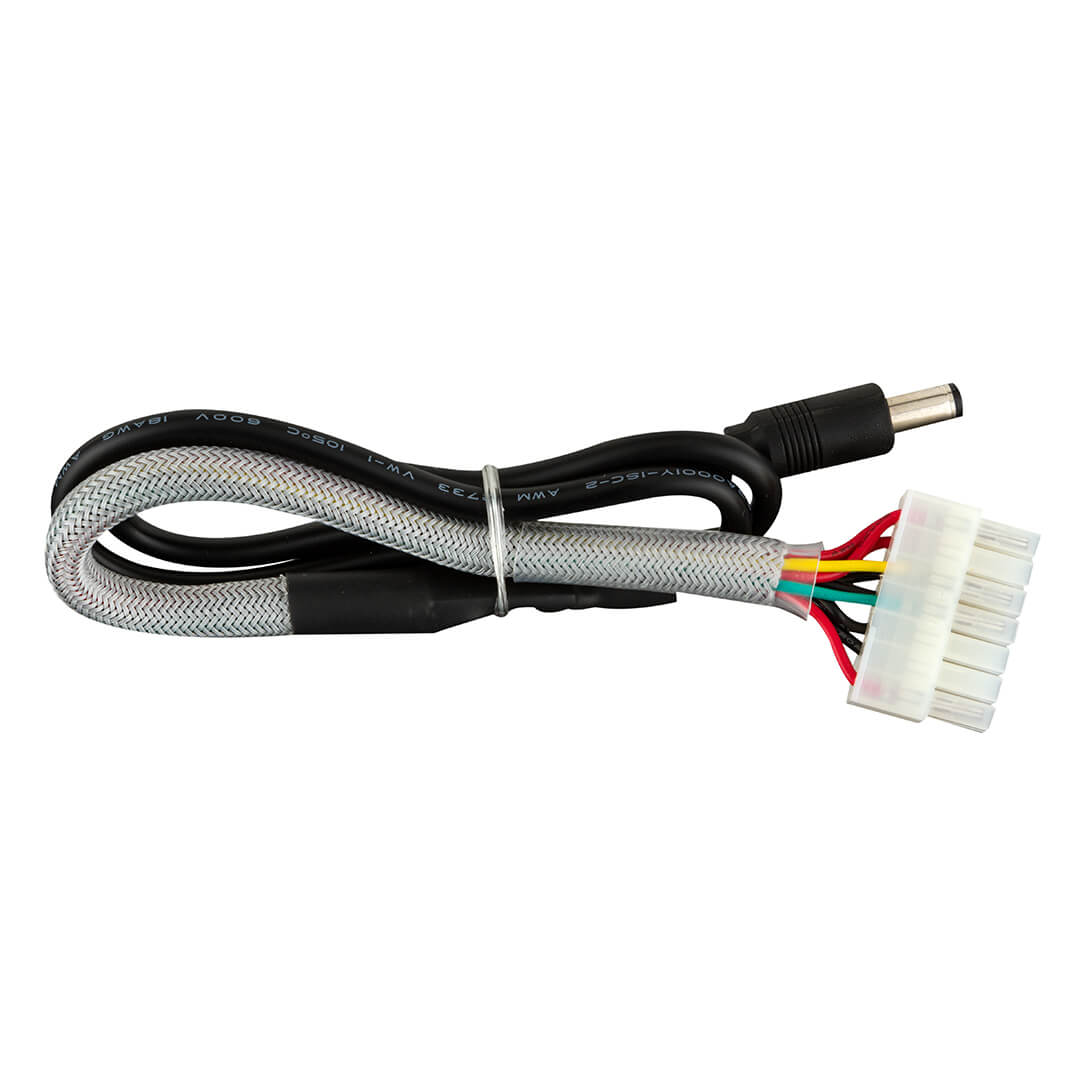

Adapter: ADAPT-RPS-MF14PG-GY
Uninterruptible power through the RPS
D-Link DGS-3420-26SC/28SC
UPS: EF9012

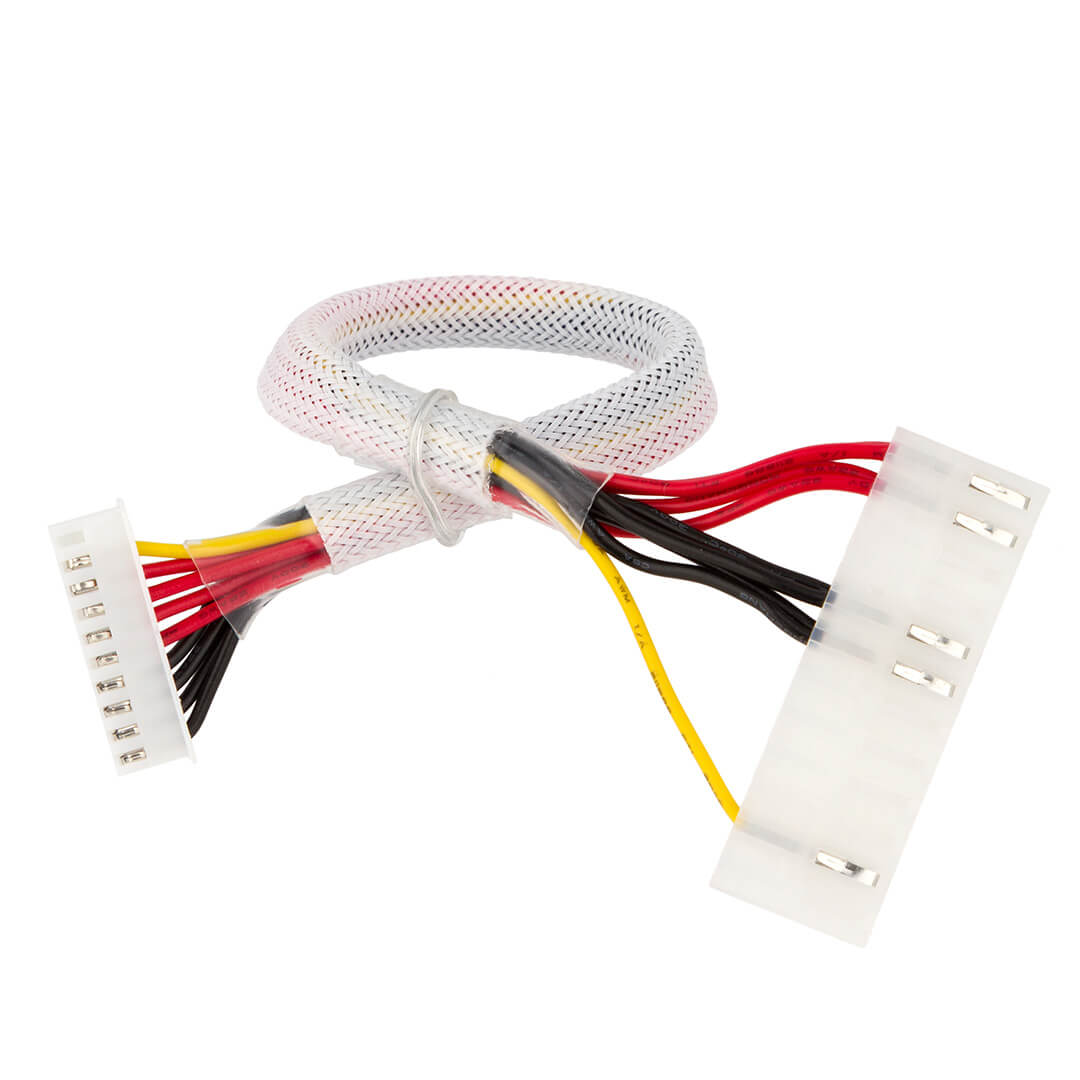

Adapter: ADAPT-NX10-PHU12PG-W
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
D-Link DGS-3427 / DGS-3420-52T
UPS: EF9012C
Adapter: ADAPT-RPS-MF14PG-GY
Uninterruptible power through the RPS
D-Link DGS-3627G
UPS: EF9012
Adapter: ADAPT-NX10-PHU12PG-W
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
Edge-Core ES3528MV2
UPS: EF6012

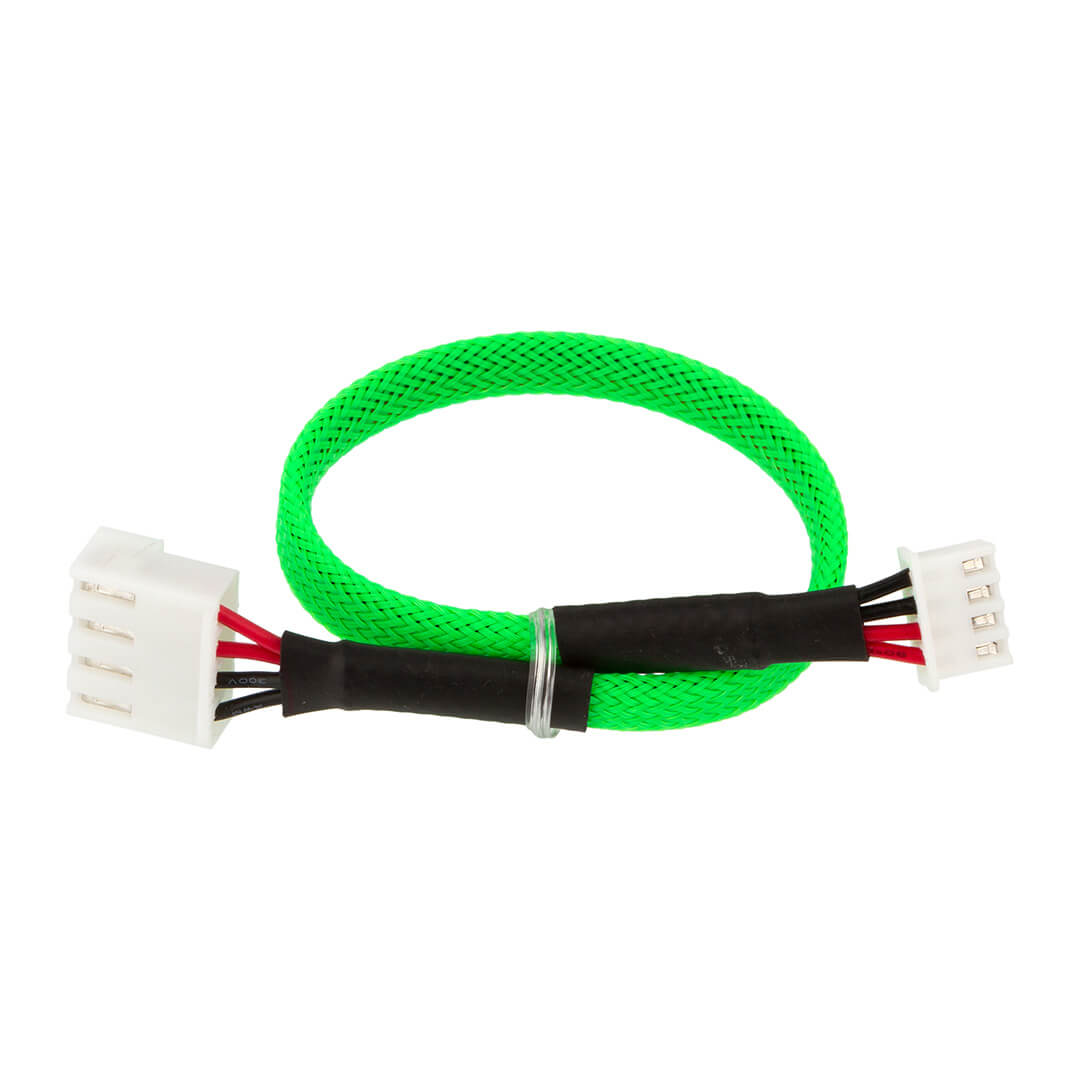

Adapter: ADAPT-NX4-NS4-GREEN
Non-standard connector 220 V: NS39-G3.
The EF6012 board overlaps the 1mm switch board, so need additional insulation and M3*8mm screw are required
The EF6012 board overlaps the 1mm switch board, so need additional insulation and M3*8mm screw are required
Edge-Core ES4624-SFP / ES4626-SFP
UPS: EF9012

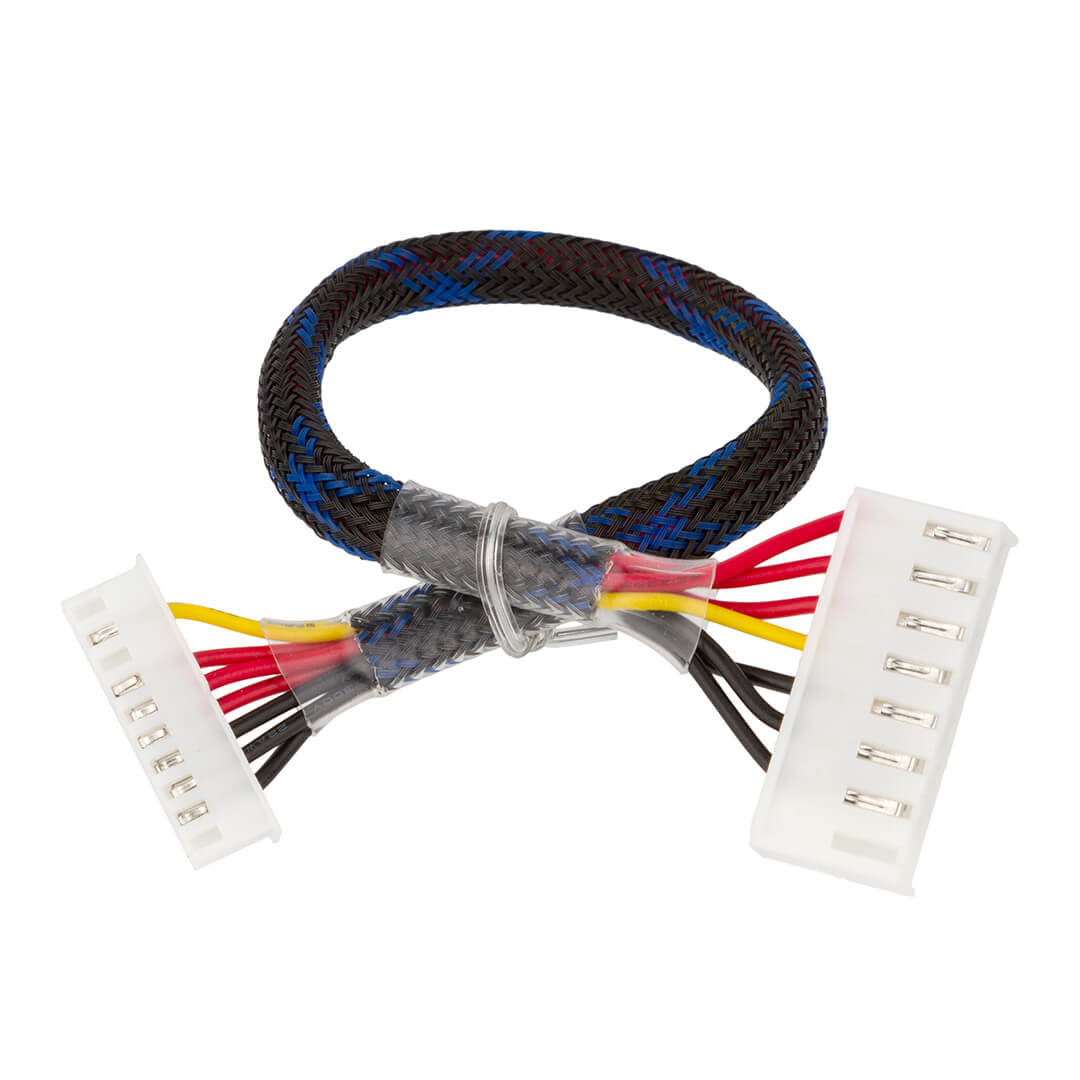

Adapter: ADAPT-NX10-NS8PG-BB
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5

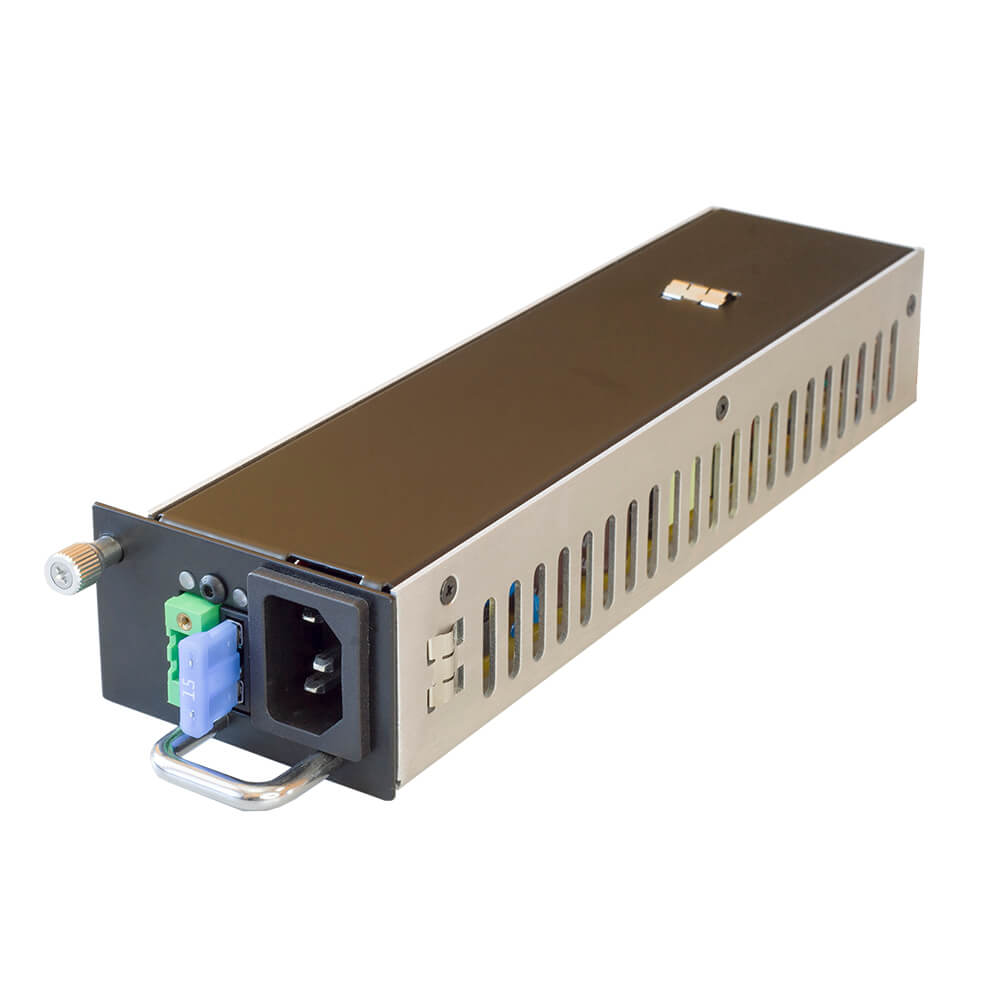

GCOM GL5610-08P/04P
UPS: EF10012C-5610-08

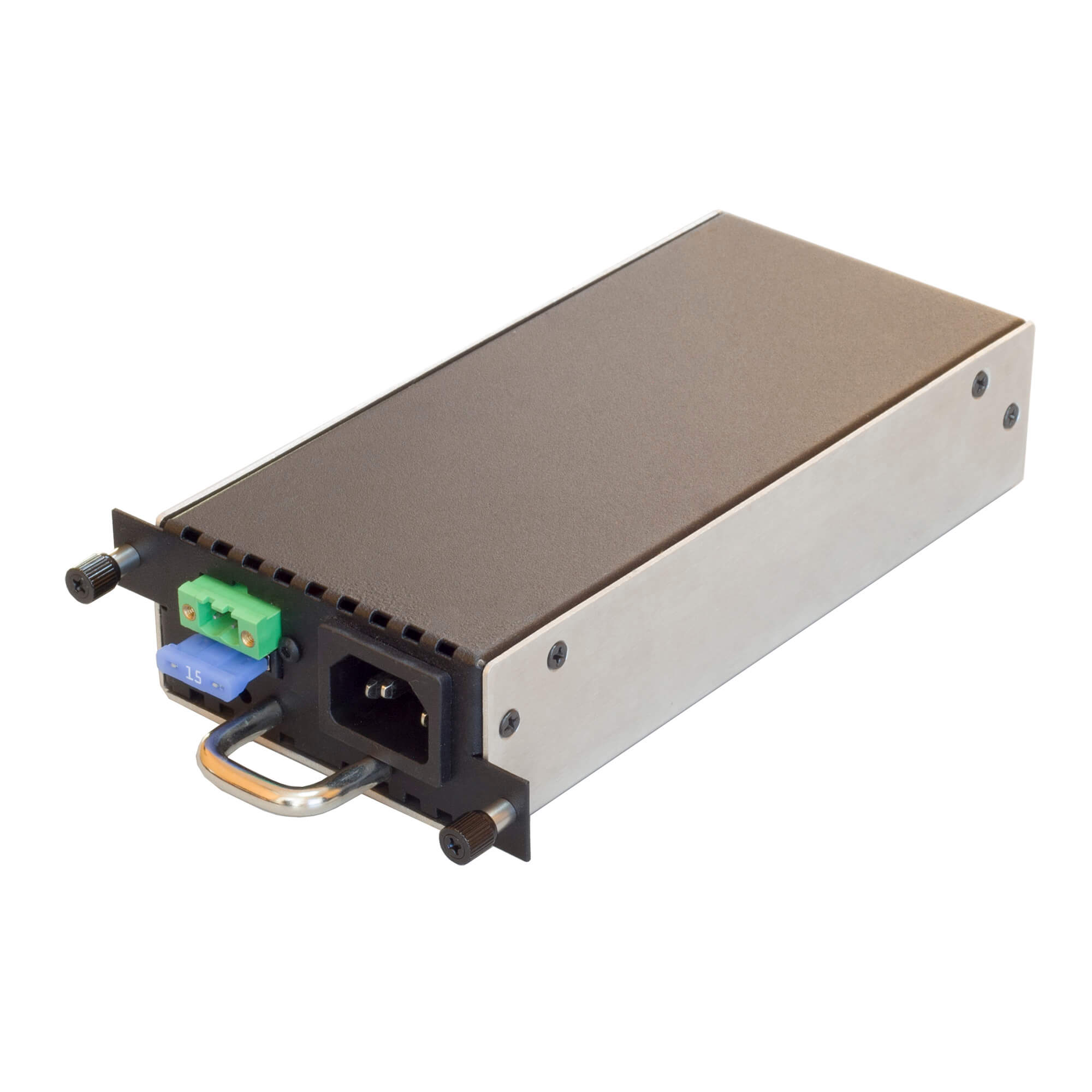

GCOM GL5610-16P
UPS: EF10012C-5610-16
HP ProCurve Switch 2810-24G (J9021A)
UPS: EF9012
Adapter: ADAPT-NX10-PHU12PG-W
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch (JG933A)
UPS: EF9012C-3600
Installing to the PWR1 or PWR2 slots
HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch (JH145A)
UPS: EF9012C-3600
Installing to the PWR1 or PWR2 slots
Huawei S2320-28TP-EI-AC
UPS: EF6012

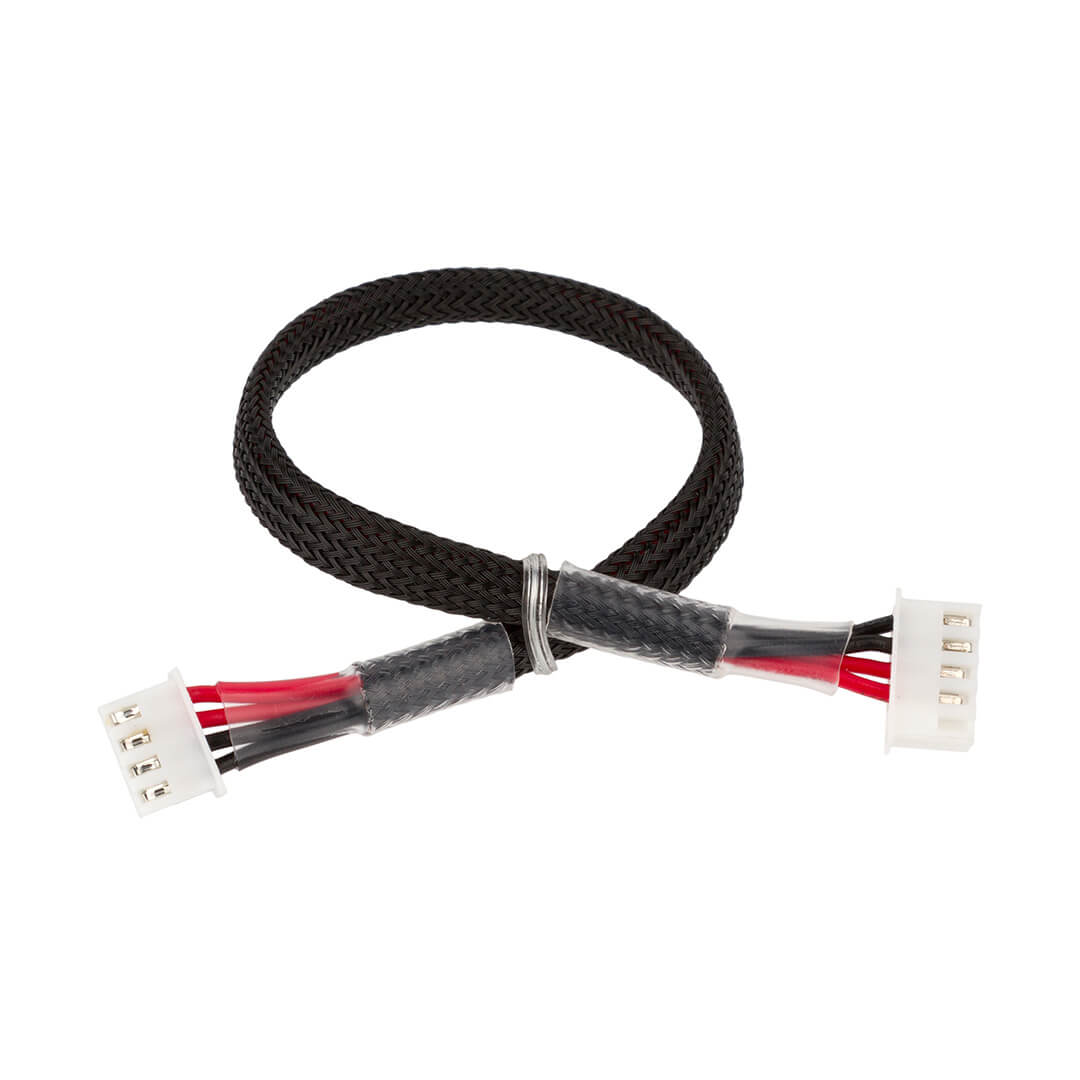

Adapter: ADAPT-NX4-NX5-BLACK
Non-standard connector 220 V: PWL-05. Для подключения переместить контакты с N---L на -N-L-
Huawei Quidwei S2326TP-Ei
UPS: EF6012
Adapter: ADAPT-NX4-NX5-BLACK
Non-standard connector 220 V: PWL-05. To connect, move the pins from N---L to -N-L-
Huawei S5300-28X-LI-24S-AC
UPS: EF9012
Adapter: ADAPT-NX10-NS8PG-BB
Non-standard connector 220 V: NS39-G3
Huawei S5700-28X-LI-24S-AC
UPS: EF9012
Adapter: ADAPT-NX10-NS8PG-BB
Non-standard connector 220 V: NS39-G3
Huawei S5700-28X-LI-24S-AC / S5320-32X-EI-24S-AC

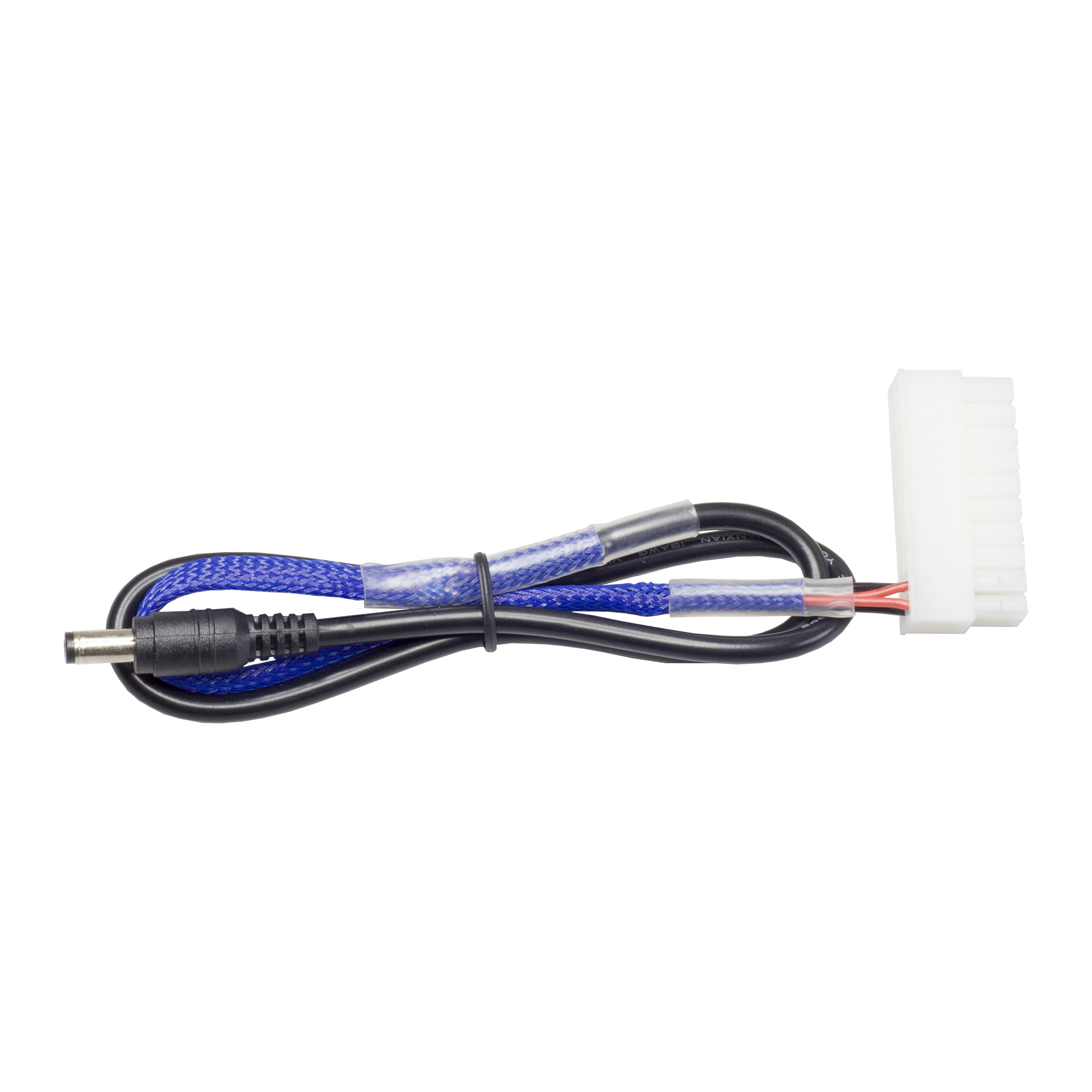

Adapter: ADAPT-RPS-MF20-BLUE
Uninterruptible power through the RPS
Juniper EX3300-24T
UPS: EF9012
Adapter: ADAPT-NX10-PHU12PG-W
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
Linksys SRW224G4-K9-EU
UPS: EF6012
Adapter: ADAPT-NX4-PHU4-PRPL
Non-standard connector 220 V: PWL-05. Нужно перенести контакты на соответствующие места с положения L-N-- на -N-L-
Raisecom ISCOM2624GF-4C-HI-AC
UPS: EF6012
Adapter: ADAPT-NX4-NS4-GREEN
Non-standard connector 220 V: NS39-G3
Raisecom ISCOM2624G-4GE-AC
UPS: EF6012
Adapter: ADAPT-NX4-NS4-GREEN
Non-standard connector 220 V: NS39-G3
MikroTik CRS312-4C-8XG-RM
UPS: EF6012

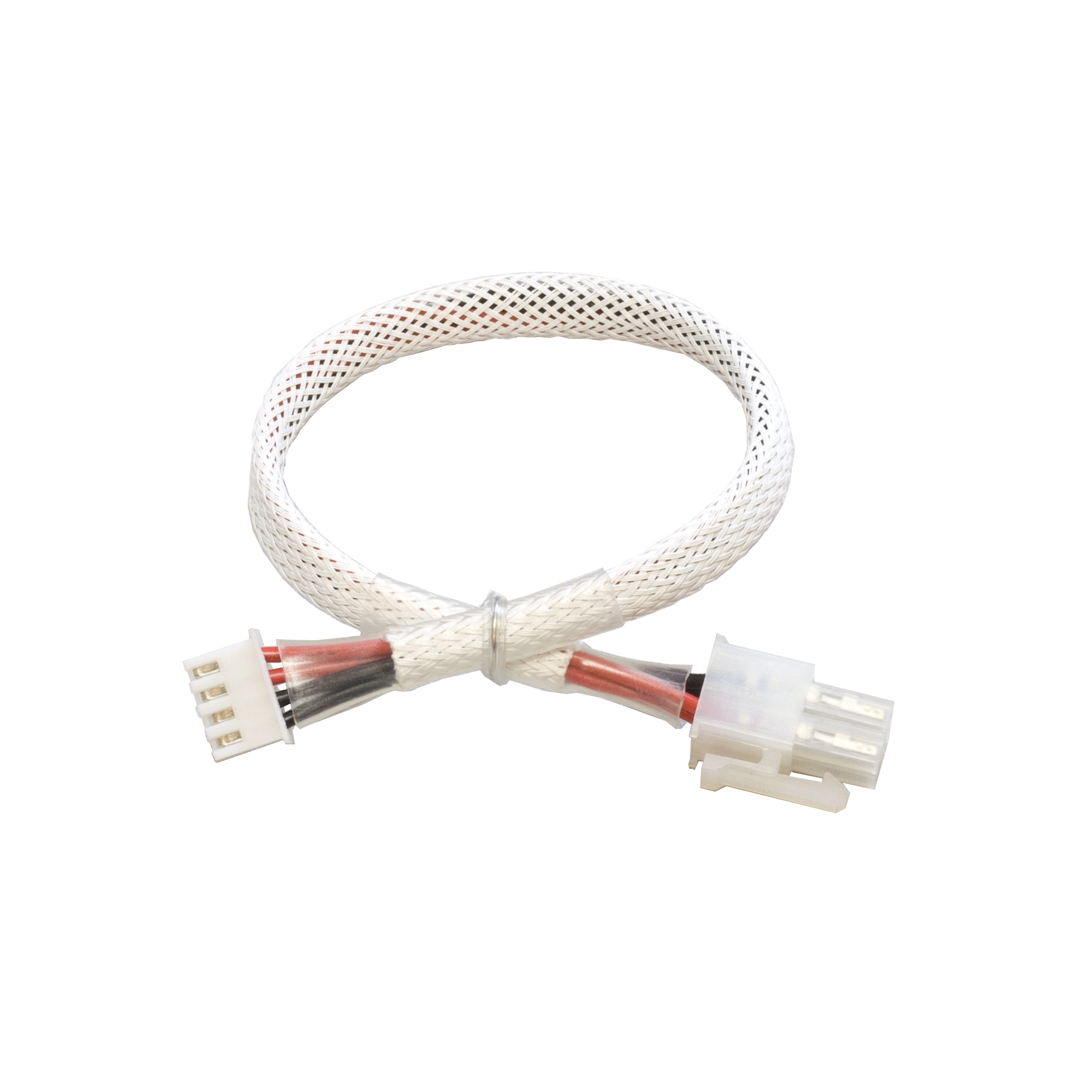

Adapter: ADAPT-NX4-MF4-WHITE
Non-standard connector 220 V: NS39-G3
MikroTik CCR1036-12G-4S
UPS: EF6012
Adapter: ADAPT-NX4-MF4-WHITE
Non-standard connector 220 V: NS39-G3
MikroTik CCR2004-1G-12S+2XS
UPS: EF6012
Adapter: ADAPT-NX4-MF4-WHITE
Non-standard connector 220 V: NS39-G3
MikroTik CCR1036-12G-4S-EM
UPS: EF6012
Adapter: ADAPT-NX4-MF4-WHITE
Non-standard connector 220 V: NS39-G3
Zyxel GS-4012F
UPS: EF6012
Adapter: ADAPT-NX4-PHU6-BB
The mounting holes do not match. Additional racks are required PCB-SUPPORT-5
This list contains information about the compatibility of our UPS EF6012, EF9012, EF9012C-3600, EF6012C, EF9012C with switches and OLTs.
The data is periodically updated.
If the model you have been looking for is not yet here, please contact us. It is often possible to determine compatibility even from a photo of the native power supply unit, without having to send us the hardware.
Updated:
28.09.2022
