DC UPS - backup power for routers and modems via an external battery 12 V

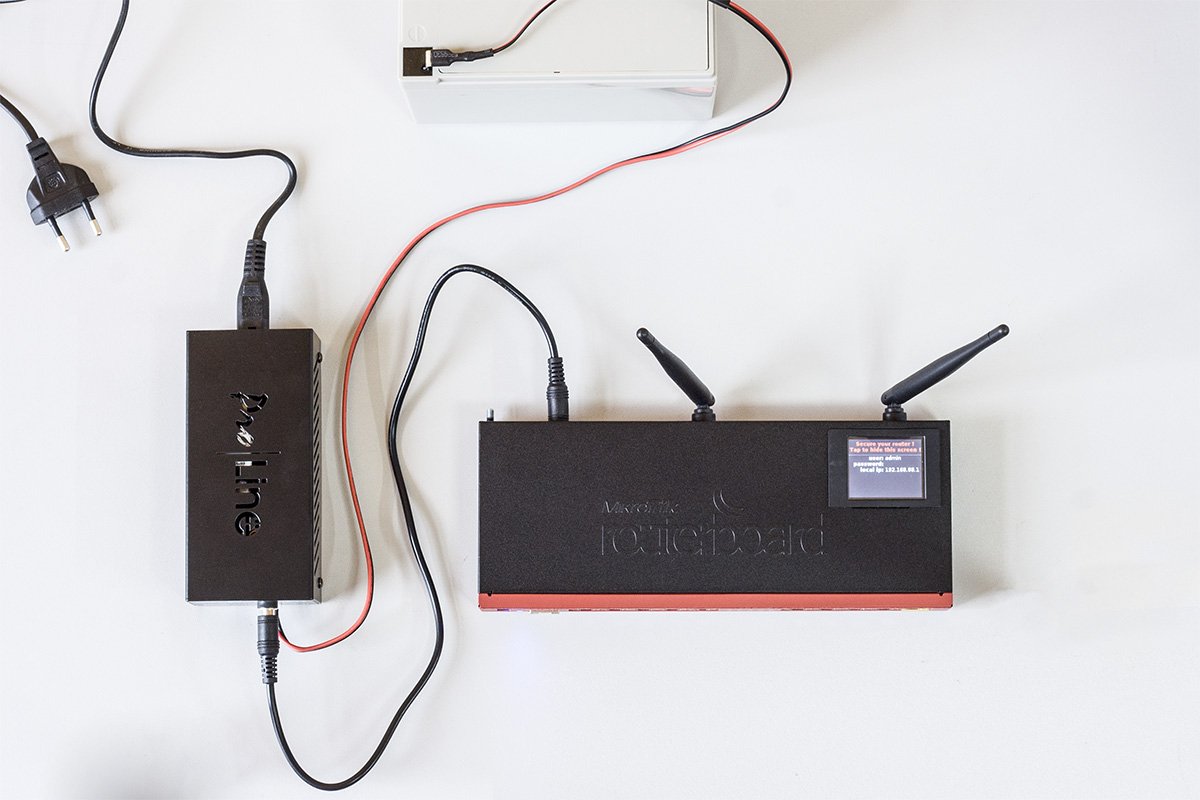

![DC UPS for routers and modems](/dc-ups/energyfive-dc-ups-for-router-and-modem.jpg)
Designed for backup the power of routers, switches, media converters, ONUs, IP cameras and Wi-Fi access points. The reserve is provided by an external 12 V lead-acid battery. Based on EF6012 / EF9012, which backup the power of network switches and OLTs on the internet provider side.
Features of DC UPS:
- Using standard lead-acid batteries with a capacity from 7 to 100 Ah;
- Battery charge in CC/CV mode;
- Start by the battery without AC main power (voltage at the battery terminals must be >12.0 V);
- Metal case with mounting holes;
- Standard connectors.

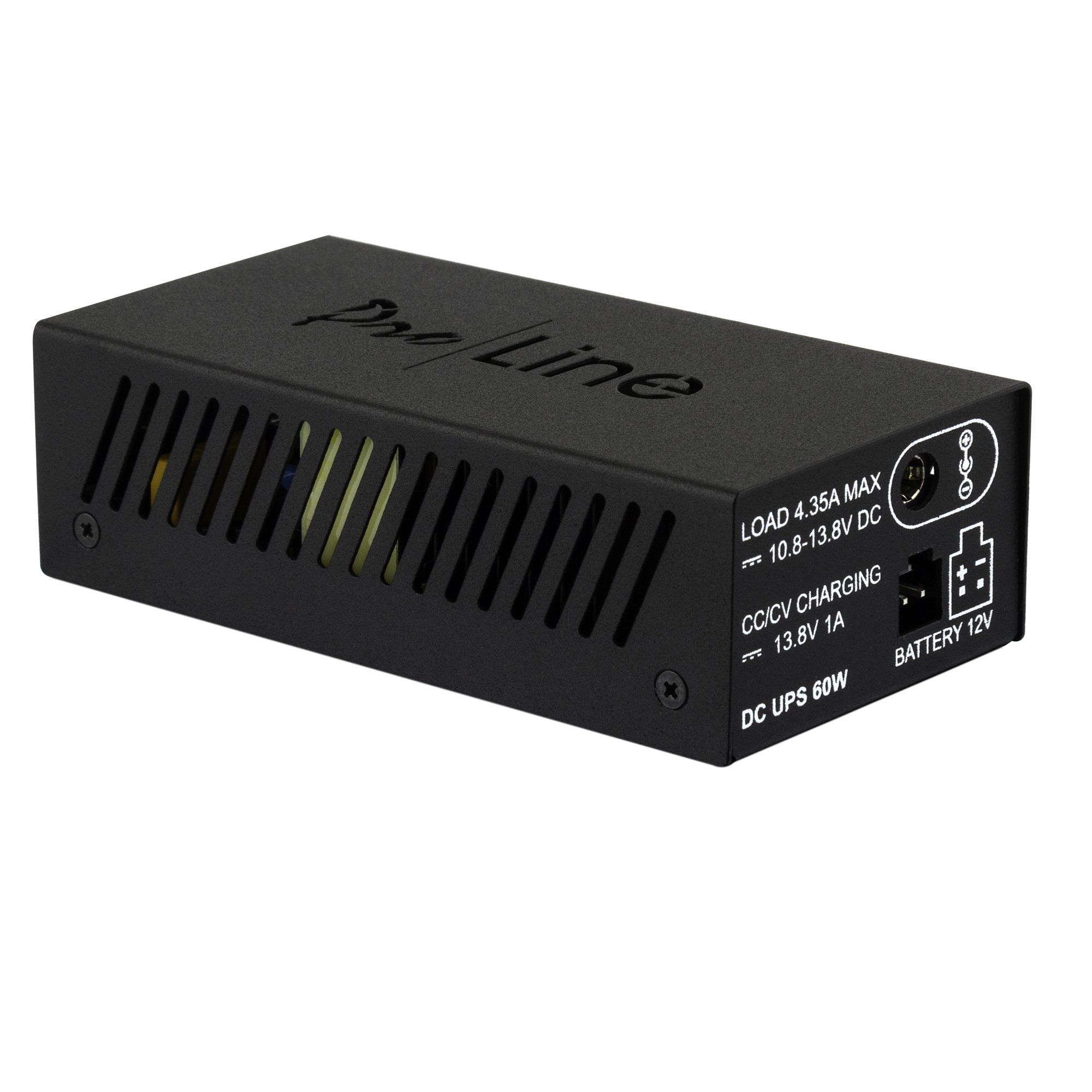

![Image of DC UPS 60W](/dc-ups/ef6012c/xef6012c.jpg.pagespeed.ic.NynHrOc3U1.jpg)
DC UPS 60W
- Input AC: ~100-220 V 1 A
- Output DC: 10.8 ...13.8 V 4.35 A
- Charge: 1 A 13.8 V CC/CV
- Power: 60 W

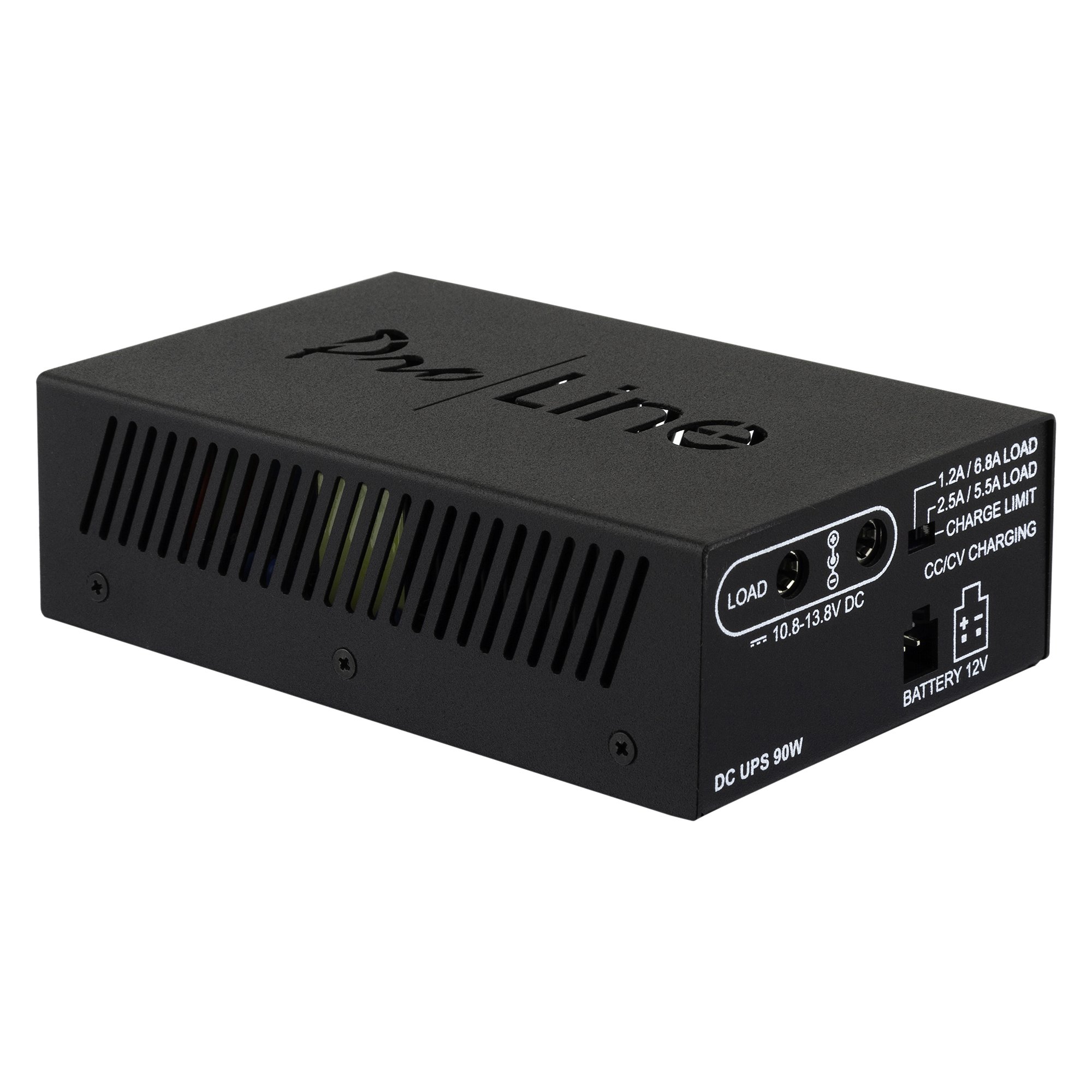

![Image of DC UPS 90W](/dc-ups/ef9012c/xef9012c.jpg.pagespeed.ic.rpBecidYUh.jpg)
DC UPS 90W
- Input AC: ~100-220 V 1.5 A
- Output DC: 10.8 ...13.8 V 6.8 A
- Charge: 2.5 A 13.8 V CC/CV
- Power: 90 W

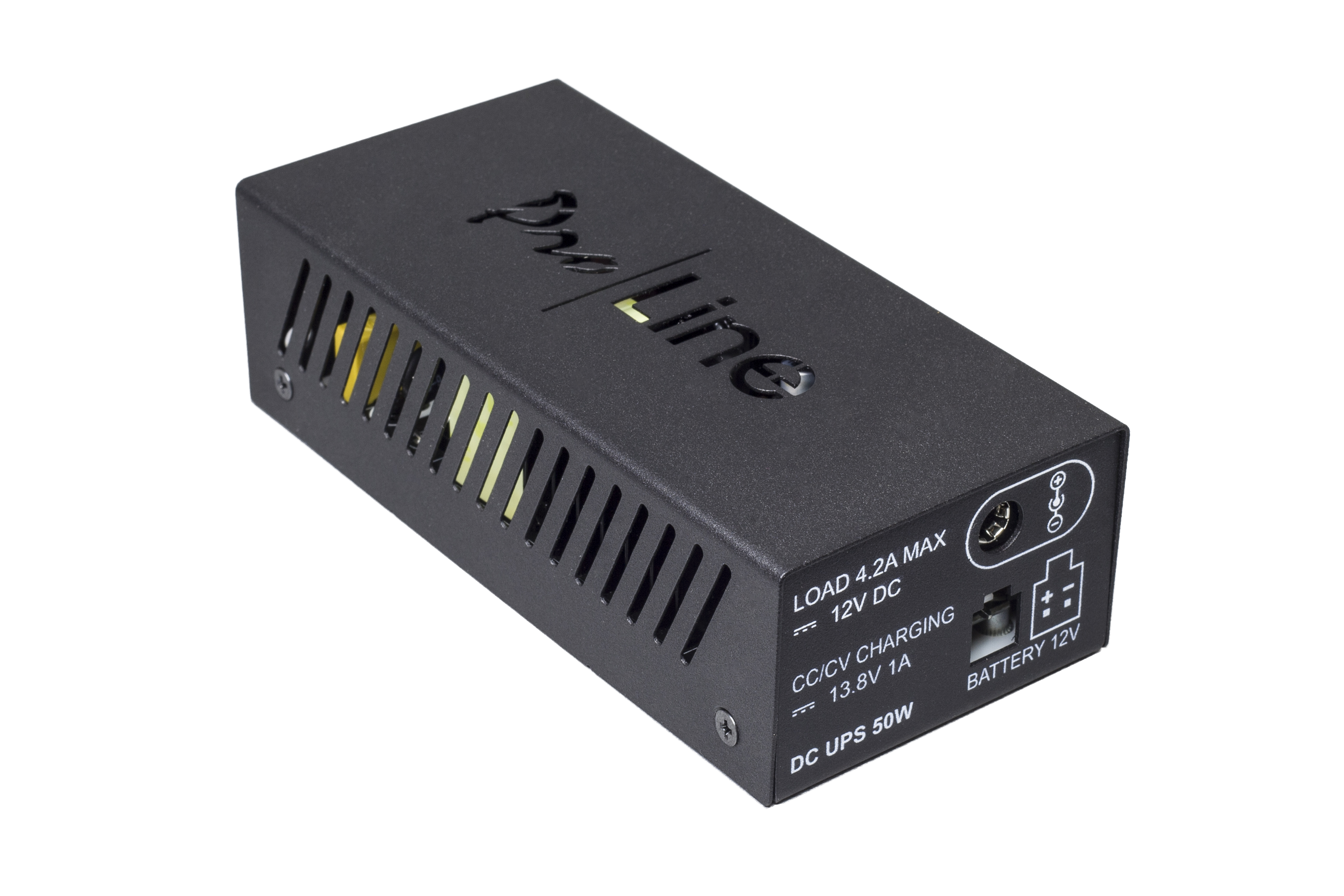

![Image of DC UPS 50W 12V stabilized](/dc-ups/ef6012c-12v/xef6012c-12v.jpg.pagespeed.ic.JjlsaAU-9U.jpg)
DC UPS 50W 12V
stabilized output
- Input AC: ~100-220 V 1 A
- Output DC: 12 V 4.2 A
- Charge: 1 A 13.8 V CC/CV
- Power: 50 W
